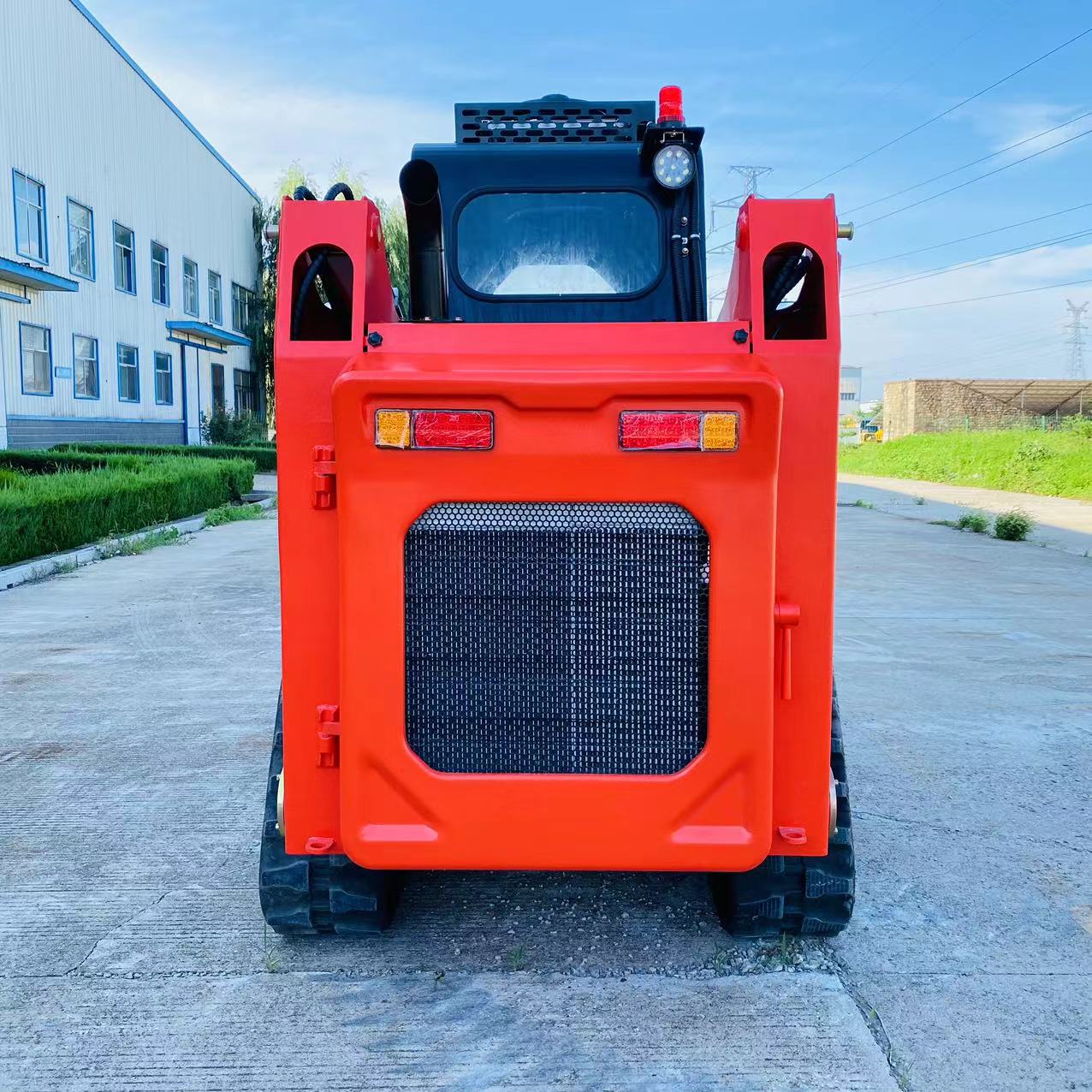

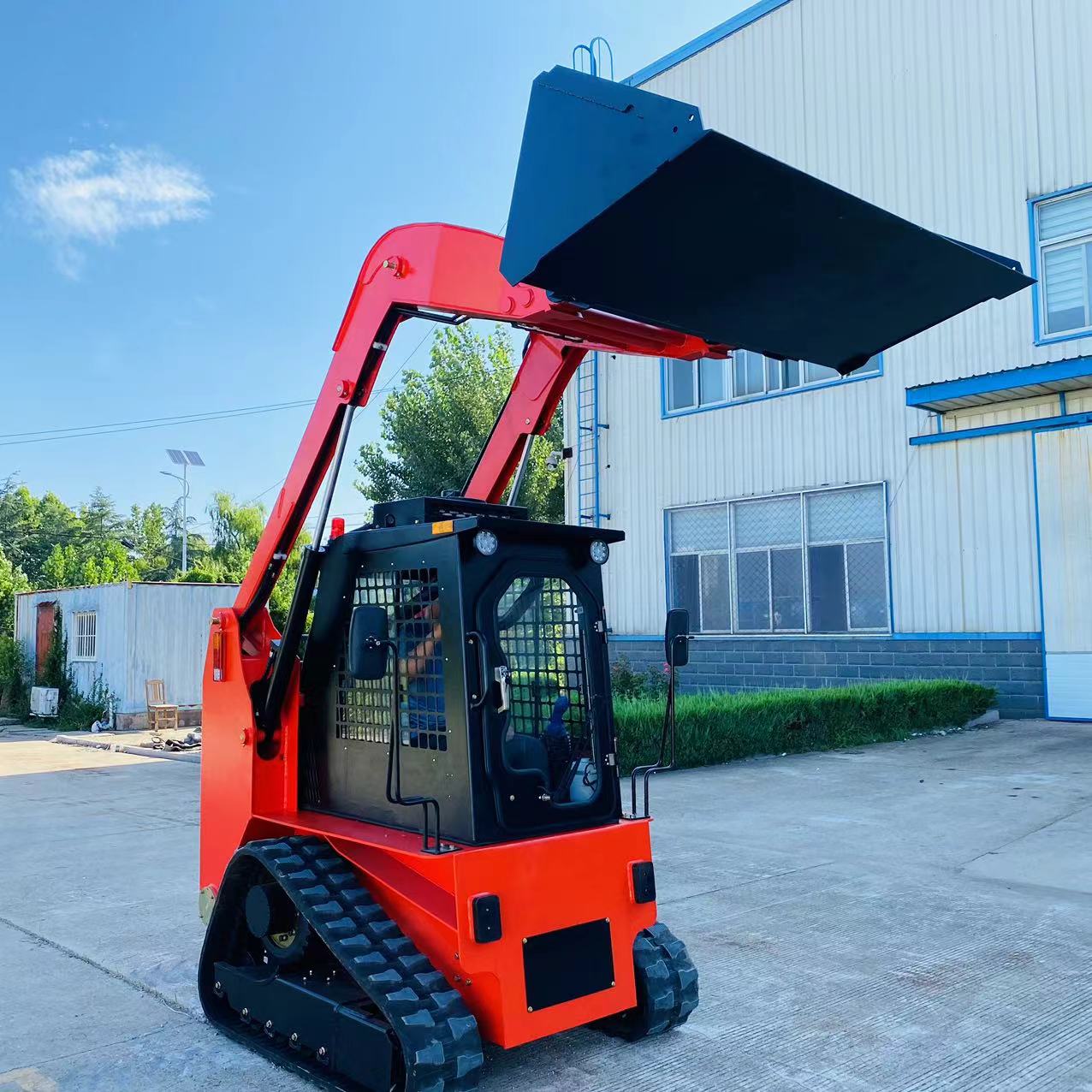

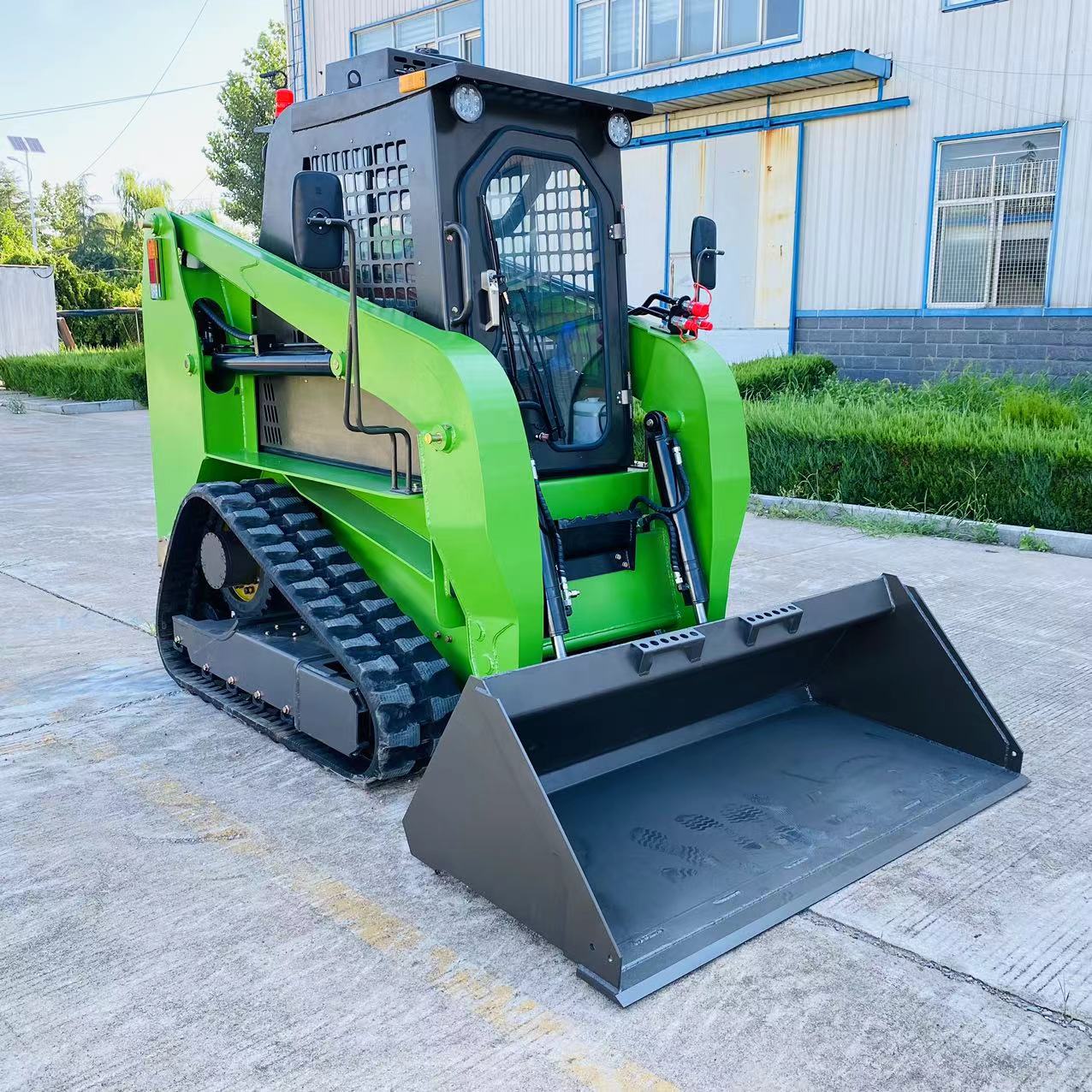

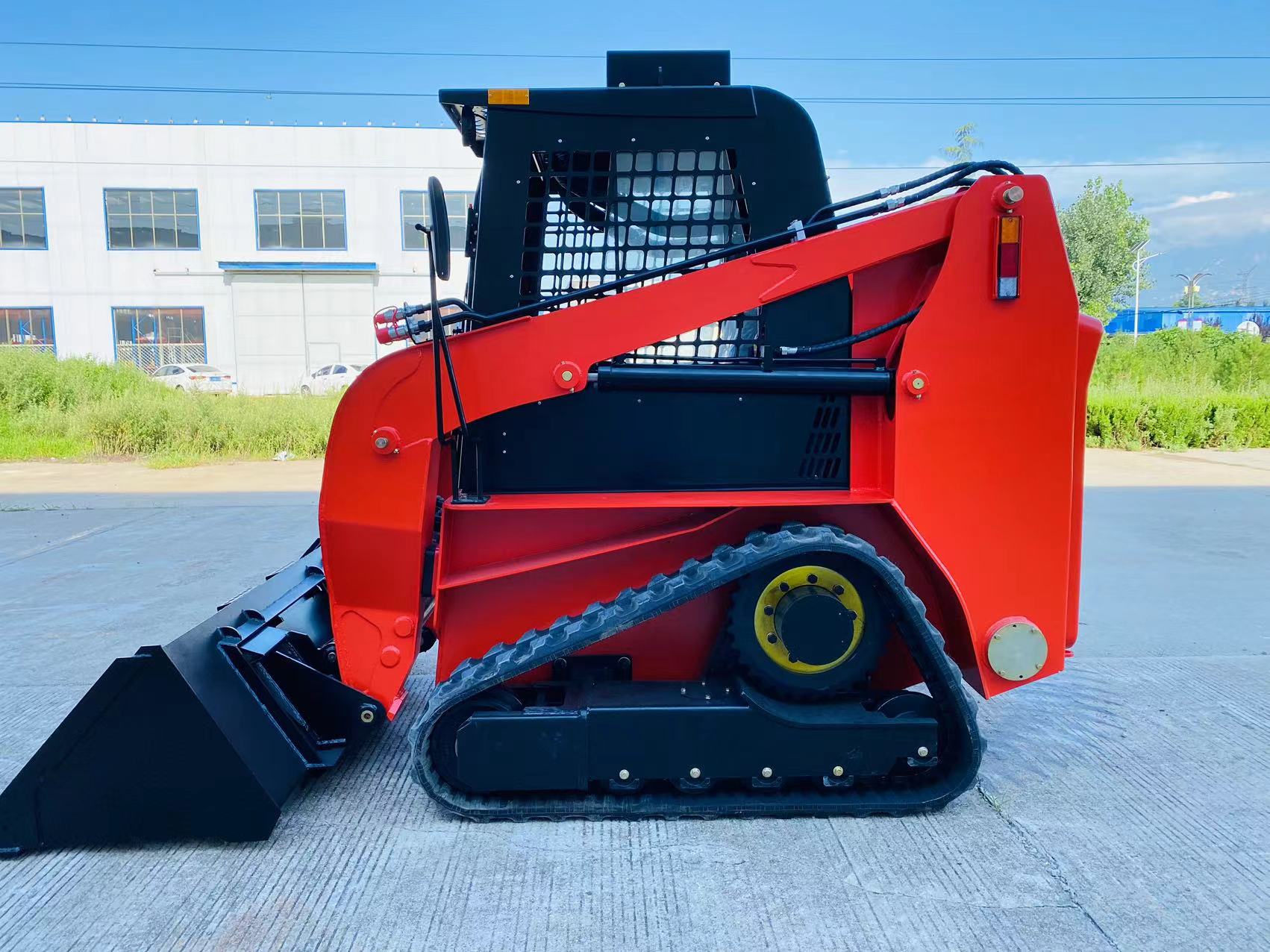

H-KingAT50 Skid steer loader
ModelAT50 Operating load (kg)700 Max Speed（km/h）10 Rated flux (L/min)80 Tire（track） model300X52.5 Rated power (Kw)45KW Fuel tank capacity (L)50 dead weight (kg)3224 self weight bucket (kg)2800 Bucket capacity (m³)0.4 Overall operating height (mm)3660 Height to bucket hinge pin (mm)2730 Hheight to top of cab (mm)2349 Height to bottom of level bucket(mm)2500 Without bucket length（mm）2170 Overall length with bucket(mm)3150 Dumping angle at maximum height(° )40 Dumping height(mm)1990 Dumping reach(mm)1040 Rollback o bucket on ground(° )30 Rollback of bucket at full height(° )100 Wheelbase(mm)1230 Ground clearance(mm)230 Angle of departure(° )18.5 Front turning radius without bucket(mm)1064 Front tuning radius(mm)1825 Rear tuning radius(mm)1264 Rear axle to bumper (mm)590 Tread width (mm)1022 Width (mm)1422 Bucket width (mm)1700
- H-KingAT50
Details
1. Powerful power & efficient operation
High-power engine: Equipped with a high-performance diesel engine that meets the National IV emission standards, it has abundant power, low fuel consumption, and is suitable for high-intensity operation needs.
Hydrostatic transmission: Continuously variable speed + four-wheel drive, strong traction, excellent climbing ability (≥30°), suitable for complex terrain.
High hydraulic flow: The large-displacement hydraulic pump provides sufficient flow to ensure the efficient operation of accessories (such as breakers and milling machines).
2. Super flexibility & versatility
Compact body & zero tail swing: The short wheelbase design allows free steering and flexible operation in narrow spaces (such as warehouses, lanes, and greenhouses).
Quick-change attachment system: Supports one-button quick change of multiple attachments (buckets, fork arms, sweepers, hydraulic hammers, etc.), realizing "one machine for multiple uses" and improving work efficiency.
3. Sturdy and durable & high reliability
Reinforced structural design: The reinforced frame and key load-bearing components are impact-resistant and wear-resistant, extending the life of the entire machine.
Fully sealed bearings & protective design: effectively prevent dust, mud and water, suitable for harsh working conditions such as mines and construction sites.
4. Comfortable control & intelligent convenience
Ergonomic cab: optional ROPS/FOPS certified protective cab, wide field of view, comfortable operation, and reduced fatigue.
Intelligent monitoring system (optional): digital instrument displays oil pressure, water temperature and other data in real time, fault warning is more timely, and maintenance is more convenient.
Double pedal brake & hydraulic lock: improve the safety of slope operation and prevent accidental sliding.
5. Low maintenance cost
Convenient maintenance design: the layout of the engine compartment is reasonable, and key components such as filter element and radiator are within reach, reducing the difficulty of maintenance.
Long-life components: high-quality hydraulic components and wear-resistant materials are used to reduce the failure rate and reduce the cost of use.
Applicable scenarios
✔ Municipal engineering: road cleaning, greening construction, snow removal
✔ Agriculture & farms: feed handling, site cleaning
✔ Construction sites: material handling, small crushing
✔ Logistics warehousing: cargo loading and unloading, indoor and outdoor transfer
